Elevate your operational capabilities with our Electric Hydraulic Lifting Platform, available in 6, 9, and 12-meter models with a movable shear fork design. Contact us today for more information, pricing, and customization options. Our team of experts is ready to assist you in selecting the perfect solution for your operational needs.

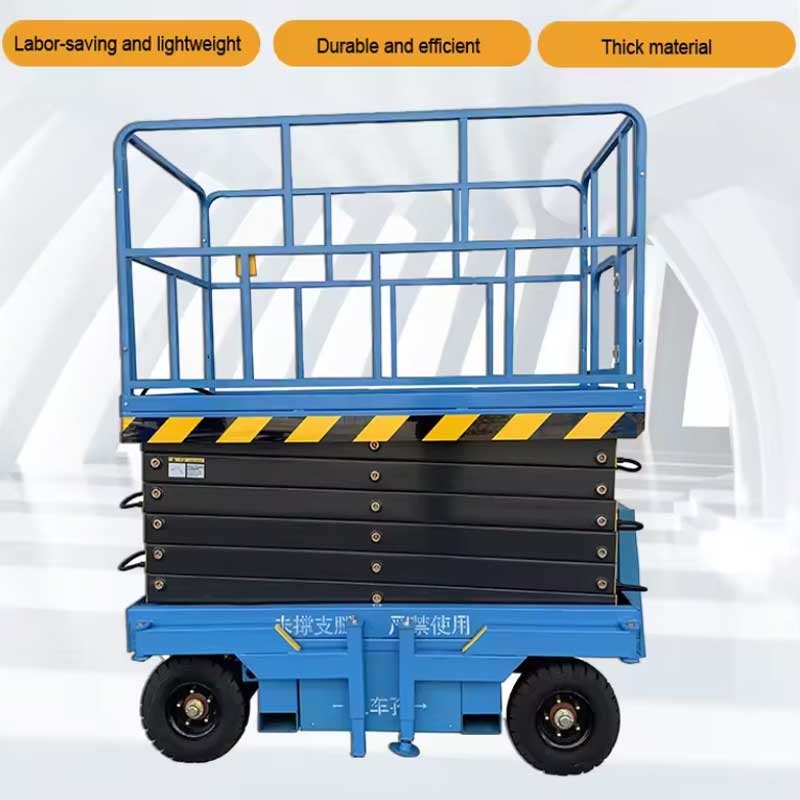

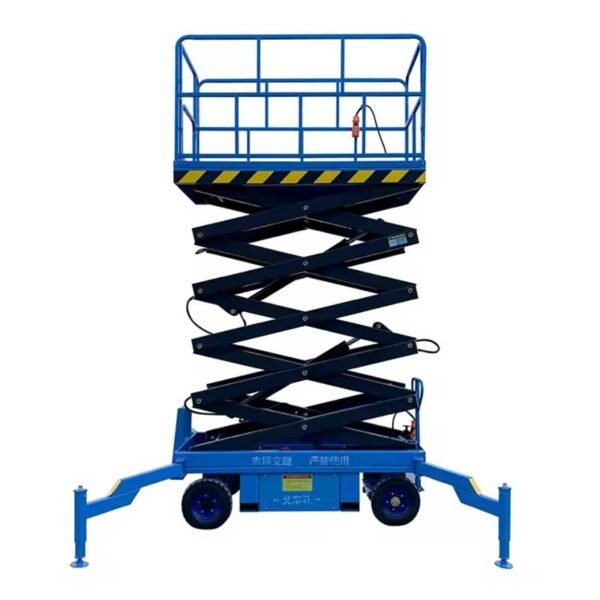

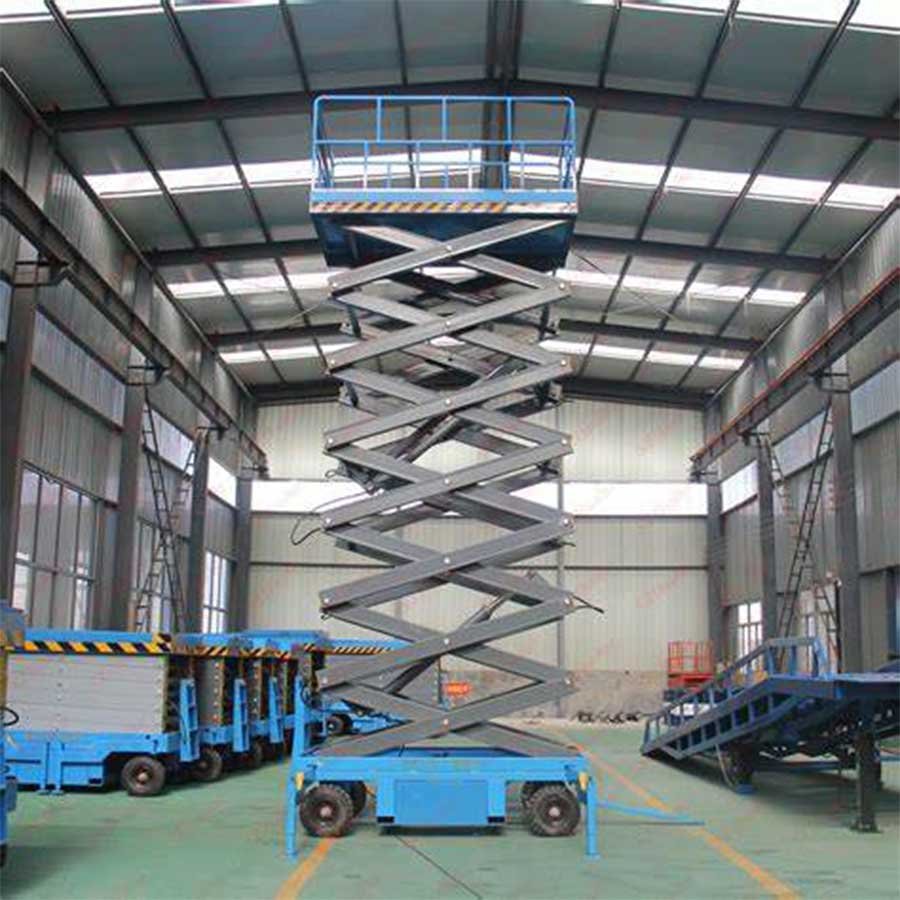

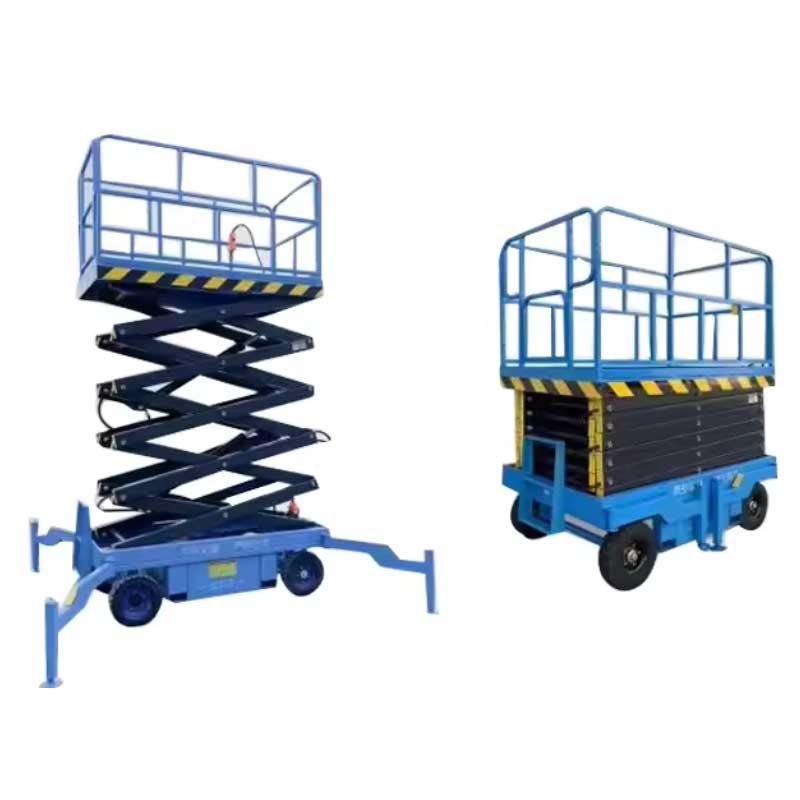

Electric lifting platform hydraulic lifting 6-12 meters movable shear fork
Introducing our Electric Hydraulic Lifting Platform with a Movable Shear Fork design, capable of reaching heights from 6 to 12 meters. This versatile and robust lifting solution is perfect for various industrial, commercial, and construction applications, offering superior performance, safety, and convenience.
Key Features
- Lifting Heights:
- 6 Meters Model: Ideal for tasks requiring moderate elevation, such as warehouse stocking and light maintenance.
- 9 Meters Model: Suitable for higher reach applications, including construction and large facility maintenance.
- 12 Meters Model: Designed for maximum height needs, perfect for extensive construction and industrial tasks.
- Electric Hydraulic Operation:
- Smooth Lifting: Advanced hydraulic system ensures smooth and efficient lifting and lowering.
- Consistent Power: Electric operation provides reliable and steady performance for various tasks.
- Movable Shear Fork Design:
- Versatile Mobility: The shear fork design allows for easy movement and precise positioning of the platform.
- Stable Structure: Ensures stability and safety even at maximum height, providing a secure working environment.
- Portable and Compact:
- Space-Efficient: Compact size and portable design make it easy to navigate through tight spaces and transport between locations.
- Ease of Use: User-friendly controls for easy operation, enhancing productivity and reducing operator fatigue.
- Durable Construction:
- High-Quality Materials: Built with robust materials to withstand heavy use and harsh conditions.
- Corrosion-Resistant Finish: Protects the platform from environmental wear, extending its lifespan.
- Advanced Safety Features:
- Safety Guardrails: Equipped with safety guardrails to protect operators while working at heights.
- Emergency Stop Button: Immediate shutdown in case of emergencies, enhancing safety.
- Anti-Slip Platform: Non-slip surface ensures a secure footing for operators.
- Customizable Options:
- Tailored Solutions: Customizable features to meet specific requirements, such as platform size, load capacity, and control systems.
|
Name |
Model | Countertop | Raised | Load （kg） | 0verall dimensions （mm） | Weight （kg） |
| （mm） | （ m） | |||||
| Lifting work platform | SJY0.5-6 | 2100*830 | 6 | 500 | 2250*950*1200 | About 880 |
| Name | Materials | |||||
| Countertop | 3mm plate bent | |||||
| Cut the fork support | 120*60*3.75mm Q235 | |||||
| Underframe | 100*50*3.75mm Q235 | |||||
| Track | 5mm plate bend to do track,using nylon slider to do guide wheel, large contact surface, stable lifting, small shaking. | |||||
| 0il cylinder | 1pc HSG80/45; Seal ring, durable and non-leaking. | |||||
| Hydraulio tubing | 2-10-43MPa double steel mesh high pressure tubing | |||||
| Pump Station | Special hydraulio pump station for lifting operation platform of Ketai Production.Equipped with emergenoy descent valve, platform | |||||
| power off can manually control the descent built-in relief valve,can prevent the upward movement of the system pressure is too | ||||||
| high, play a protective function | ||||||
| Power and voltage | 1.1kw/220v/50hz (DC motor or diesel engine can be selected if the outdoor operation is not convenient to connect the power | |||||
| supply,it is required to inform in advance) | ||||||
| Tyre | 400-8 4pcs pneumatio tires (note: iron pin more environment recommended to replace solid rubber tires) | |||||
| Outrigger | 100 * 50*3.75mm Q235 | |||||
| Distribution box | Delixi brand | |||||
| Control form | Up and down controls. The control part is equipped with safety emergenoy stop to maximize property and personal safety. 36V safety | |||||
| control voltage is used in each operation part | ||||||
| Stroke switch | Shanghai ASEAN Brand | |||||
| Shaft pins | 45# round steel, galvanized. | |||||
| Hydraulio oil | 32# Great Wall anti-wear hydraulio oil | |||||
| Speed of rise and fall | 4-6 m/min with adjustable descent speed | |||||
| Rust removal treatment | Shot blasting,sand blasting treatment; Remove the corrosion and splash on the surface of the steel struoture members, which can | |||||
| make the surface of the steel members produce a certain degree of uneven effect Fruit, increase the adhesion of powder. | ||||||
| Spray treatment | Use electrostatic powder spray; The appearance of the coating is of excellent quality, strong adhesion and mechanical strength, | |||||
| high brightness in color ，durable and colourfast. | ||||||
| Ways to move | Manual traction (optional battery assisted walking, saving manpower, convenient and quick) | |||||
| Precautions for use | ① Please support the leg before lifting and lowering ② do not move the machine during lifting and lowering ③ operate according to | |||||
| requirements, pay attention to the safety of electricity | ||||||
Applications
- Construction:
- Ideal for tasks such as painting, installation, and maintenance at various heights.
- Warehousing:
- Suitable for stacking and retrieving goods on high shelves, optimizing storage space.
- Maintenance:
- Perfect for facility maintenance, including lighting repairs, HVAC servicing, and more.
- Manufacturing:
- Streamlines processes such as assembly and inspection in manufacturing facilities.
- Event Setup:
- Facilitates the setup and teardown of stages, lighting, and other equipment for events.
Benefits
- Increased Productivity:
- Smooth and efficient lifting operation enhances productivity for various tasks.
- Versatile Applications:
- Suitable for a wide range of industries, from construction to warehousing and event management.
- Operator Comfort and Safety:
- Ergonomic design and advanced safety features ensure a comfortable and safe working environment.
- Durable and Reliable:
- Built to last, with high-quality materials and a robust design for long-term reliability.
- Customizable and Portable:
- Tailored solutions to meet specific needs and a portable design for versatile use.
